1st version 10/07/2026

General

This guide describes how to install and use an National Instruments GPIB-USB-HS (USB, IEEE-488 GPIB Instrument Control Device) on Ubuntu 24.04 and Ubuntu 26.04 using Linux-GPIB 4.3.7.

The particular adapter used in this project requires a modification to the ni_usb_gpib.c file because its identification sequence during startup differs from what the original Linux-GPIB driver expects. I prepared the required modifications as a patch file so that they can be applied easily. The patch code is provided at the end of this page and on GitHub.

I was unable to get the official NI-488.2 package to work properly with this adapter, so I decided to use Linux-GPIB instead.

The setup procedure is similar to that for the Agilent 82357B when using Linux-GPIB. However, the NI GPIB-USB-HS requires a few additional steps, including configuration of gpib.conf and, for the particular adapter tested here, application of a patch.

If the driver and firmware files for both adapters are installed, the Agilent 82357B and NI GPIB-USB-HS can be used on the same Ubuntu installation by connecting the desired adapter.

Test Configurations

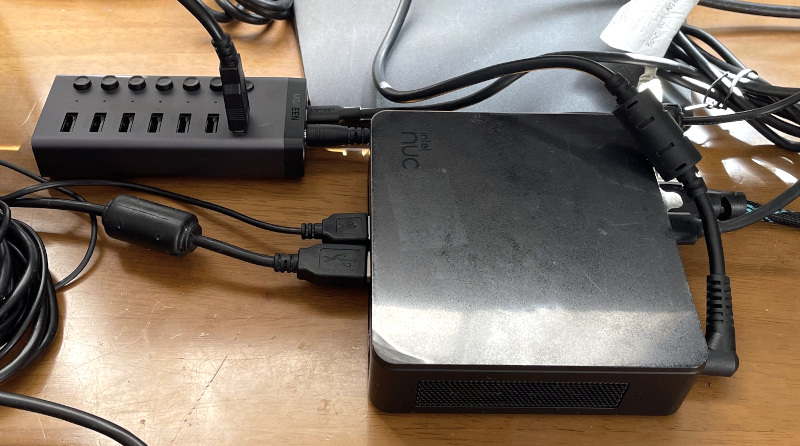

Intel NUC13ANK

• Intel Core i5-1340P – 16 GB RAM – Intel Iris Xe Graphics (onboard)
• Ubuntu 24.04.4 LTS, clean installation
• Ubuntu 26.04.1 LTS, clean installation

HP ENVY 17t-s100

• Intel Core i7-6700HQ – 16 GB RAM – Intel HD Graphics 530
• Ubuntu 24.04.4 LTS

USB-GPIB adapter: NI GPIB-USB-HS
This adapter was purchased as a new item from an eBay seller named “NI Grocery Store” for $50 in May 2026.

Test Equipment

Linux-GPIB Drivers and Utilities Installation

1. Install the Build Tools and Required Development Packages

sudo apt install python3-setuptools

sudo apt update
sudo apt upgrade
sudo apt install build-essential
sudo apt install python3-setuptools
sudo apt install python3-dev
sudo apt install libboost-python-dev

Reboot Ubuntu before continuing:

sudo reboot

The kernels used for the tests described here were:

Ubuntu 24.04.4: 7.0.0-31-generic
Ubuntu 24.04.4: 7.0.0-34-generic
Ubuntu 26.04.1: 7.0.0-31-generic

Disconnect the GPIB adapter’s USB cable from the PC before starting the installation.

2. Download the Linux-GPIB Driver Package from SourceForge

Linux-GPIB download page:
https://sourceforge.net/projects/linux-gpib/files/linux-gpib%20for%203.x.x%20and%202.6.x%20kernels/

Download Linux-GPIB 4.3.7.

cd ~/Downloads
ls -al linux-gpib-4.3.7.tar.gz

Example:

-rw-rw-r-- 1 mm mm 1309937 Sep 6 15:11 linux-gpib-4.3.7.tar.gz

3. Copy the Package to /opt and Extract It

sudo cp linux-gpib-4.3.7.tar.gz /opt/
cd /opt/
sudo tar -xzf linux-gpib-4.3.7.tar.gz
cd linux-gpib-4.3.7/
ls -al

The package contains separate kernel and user-space archives:

-rw-r--r-- 1 mm users  213606 Oct 5 2025 linux-gpib-kernel-4.3.7.tar.gz
-rw-r--r-- 1 mm users 1095172 Oct 5 2025 linux-gpib-user-4.3.7.tar.gz
-rw-r--r-- 1 mm users    4175 Oct 5 2025 README.txt

Extract both archives:

sudo tar -xzf linux-gpib-kernel-4.3.7.tar.gz
sudo tar -xzf linux-gpib-user-4.3.7.tar.gz

uname -r

find /lib/modules/$(uname -r) -name "ni_usb_gpib.ko*"

4. Install the Linux Kernel Headers

sudo apt install linux-headers-$(uname -r)

5. Apply the Special Patch for the NI GPIB-USB-HS

5-1. Prepare the patch file

The patch code is also included at the end of this page. Alternatively,
the patch file can be downloaded from GitHub:

https://github.com/moriyasum/GPIB/blob/main/ni_usb_gpib_709b_linux-gpib-4.3.7.patch

Place the following file in ~/Downloads:

ni_usb_gpib_709b_linux-gpib-4.3.7.patch

Confirm that it is present:

ls -al ~/Downloads/*.patch

Example:

-rw-rw-r-- 1 mm mm 2224 Sep 8 16:06 /home/mm/Downloads/ni_usb_gpib_709b_linux-gpib-4.3.7.patch

Move to the Linux-GPIB kernel source directory:

cd /opt/linux-gpib-4.3.7/linux-gpib-kernel-4.3.7

5-2. Test the Patch First

Use --dry-run to check whether the patch can be applied without actually modifying the source:

patch --dry-run -p1 < ~/Downloads/ni_usb_gpib_709b_linux-gpib-4.3.7.patch

If the dry run is successful, a message similar to the following is displayed:

checking file drivers/gpib/ni_usb/ni_usb_gpib.c

5-3. Apply the Patch

patch -p1 < ~/Downloads/ni_usb_gpib_709b_linux-gpib-4.3.7.patch

If the patch is applied successfully, a message similar to the following is displayed:

checking file drivers/gpib/ni_usb/ni_usb_gpib.c

6. Build and Install the Kernel Drivers

Move to the kernel source directory:

cd /opt/linux-gpib-4.3.7/linux-gpib-kernel-4.3.7/

Build and install the drivers:

make clean
make

sudo make install

During installation, drivers for multiple supported GPIB interfaces are installed. Among them, you should see entries such as:

INSTALL /lib/modules/7.0.0-31-generic/gpib/agilent_82357a/agilent_82357a.ko
INSTALL /lib/modules/7.0.0-31-generic/gpib/ni_usb/ni_usb_gpib.ko

The exact kernel version in the path will depend on the output of

uname -r

7. Install the User-Space Libraries and Utilities

Move to the user-space source directory:

cd /opt/linux-gpib-4.3.7/linux-gpib-user-4.3.7/

Configure, build, and install:

./configure --sysconfdir=/etc
make

sudo make install

This installs the Linux-GPIB user-space library and utilities, including programs such as gpib_config, ibtest, and ibterm.

8. Install the Python Binding

8-1. Make libgpib.so.0 Available to the PyVISA Backend

In my environment, the following symbolic link was required so that the PyVISA @py backend could locate libgpib.so.0:

sudo ln -s /usr/local/lib/libgpib.so.0 /lib/libgpib.so.0

8-2. Install the Linux-GPIB Python Binding

Move to the Python directory in the Linux-GPIB source tree:

cd /opt/linux-gpib-4.3.7/linux-gpib-user-4.3.7/language/python
ls -al

Confirm that setup.py is present, and install the binding:

sudo python3 setup.py install

9. Install PyVISA for Python Instrument Control

sudo apt update
sudo apt install python3-pyvisa

Check the PyVISA installation:

pyvisa-info

If the Linux-GPIB backend has been installed correctly, the final part of the output should include lines similar to:

GPIB INSTR: Available via Linux GPIB (b'4.3.7')
GPIB INTFC: Available via Linux GPIB (b'4.3.7')

Reboot Ubuntu before continuing:

sudo reboot

10. Configure gpib.conf

10-1. Edit gpib.conf

Open the configuration file:

sudo gedit /etc/gpib.conf

Replace its contents with:

interface {
    minor = 0
    board_type = "ni_usb_b"
    name = "gpib0"
    pad = 0
    sad = 0
    timeout = T3s
    master = yes
}

Save the file.

Power on the GPIB instrument. In this example, the instrument is an HP 34401A DMM at GPIB address 13.

Then connect the USB cable from the NI GPIB-USB-HS to the computer.

10-2. Apply the Settings in gpib.conf

Run:

sudo gpib_config

If the command completes without displaying an error, this is normal.
For example:

mm@NUC13:~$ sudo gpib_config
mm@NUC13:~$

Check whether the USB adapter is detected:

lsusb | grep GPIB

Example:

Bus 003 Device 005: ID 3923:709b National Instruments Corp. GPIB-USB-HS

11. Install fxload

Install fxload before setting up the firmware:

sudo apt install fxload

12. Install the Firmware

12-1. Download and Extract the Firmware Package

Move to /opt and download the firmware package:

cd /opt
sudo wget --content-disposition --no-check-certificate http://linux-gpib.sourceforge.net/firmware/gpib_firmware-2008-08-10.tar.gz

Extract the archive:

sudo tar -xvf gpib_firmware-2008-08-10.tar.gz

12-2. Copy the Firmware Files

For the NI GPIB-USB-HS:

cd /opt/gpib_firmware-2008-08-10/ni_gpib_usb_b
sudo cp -r * /usr/local/share/usb/ni_usb_gpib

If you also want to use an Agilent 82357B, its firmware can be installed at the same time. Note that the firmware directory for the 82357B is named agilent_82357a:

cd /opt/gpib_firmware-2008-08-10/agilent_82357a/
sudo cp -r * /usr/local/share/usb/agilent_82357a/

If the driver and firmware files for both adapters are installed, you can use either adapter on the same Ubuntu installation by connecting the adapter you want to use.

After installing the firmware files,
Disconnect the GPIB adapter’s USB cable from the PC and reconnect it.

13. Configure GPIB Device Permissions

By default, /dev/gpib0 may be accessible only by root. Configure a udev rule so that Linux-GPIB applications, including ibtest and Python programs, can access the device without sudo.

13-1. Check Membership in the plugdev Group

Run:

groups

In my environment, plugdev was already listed:

mm adm cdrom sudo dip plugdev users lpadmin

If plugdev is already listed, skip the next usermod command.
If plugdev is not listed, add the current user to the group.

sudo usermod -aG plugdev $USER

Log out and log back in after running this command.

13-2. Create a udev Rule

Open a new rule file:

sudo gedit /etc/udev/rules.d/99-gpib.rules

Add the following line:

KERNEL=="gpib[0-9]*", GROUP="plugdev", MODE="0660"

Save the file, and reload the udev rules:

sudo udevadm control --reload-rules
sudo udevadm trigger

Disconnect the GPIB adapter’s USB cable from the PC and reconnect it.

Check the permissions:

ls -l /dev/gpib0

In my environment, the result was:

crw-rw---- 1 root plugdev 160, 0 Sep 7 12:07 /dev/gpib0

If plugdev is shown as the group and your user belongs to plugdev, the device can be accessed without sudo.

14. Final Check

14-1. Check USB Detection

lsusb | grep HS

Example:

Bus 003 Device 061: ID 3923:709b National Instruments Corp. GPIB-USB-HS

14-2. Check the LEDs on the GPIB-USB-HS

On the adapter tested here, both LEDs are relatively dim.

• Ready (orange): stays on continuously.
• Active (green): flashes during GPIB communication and is
  normally off when idle.

The Linux-GPIB driver, user-space utilities, firmware, and device permissions are now configured, and the NI GPIB-USB-HS is ready for an actual communication test.

The next section uses the Linux-GPIB utilities ibtest and ibterm to communicate with an HP 34401A.

Utility Applications

The Linux-GPIB installation includes several command-line utilities. Before testing with Python, it is useful to confirm basic GPIB communication with ibtest and ibterm.

The examples below use an HP 34401A at GPIB address 13.

✎ Change the GPIB address to match your instrument.

1. Test Communication with ibtest

1-1, Operation

ibtest, included with Linux-GPIB, provides a simple way to verify communication with a GPIB instrument without writing a program.

Start ibtest:

ibtest

For the example used in this guide, enter the following selections:

• d — open a device, not a GPIB interface board
• 13 — GPIB address of the HP 34401A
• w — write a command to the instrument
• *IDN? — query the instrument identification
• r — read the response
• 100 — maximum number of bytes to read

A typical session is shown below:

Do you wish to open a (d)evice or an interface (b)oard?
    (you probably want to open a device): d
enter primary gpib address for device you wish to open [0-30]: 13
trying to open pad = 13 on /dev/gpib0 ...

After the device has been opened, select w:

: w
enter a string to send to your device: `*IDN?`

Then select r and specify the maximum number of bytes to read:

: r
enter maximum number of bytes to read [1024]: 100
trying to read 100 bytes from device...
received string: 'HEWLETT-PACKARD,34401A,0,7-5-2
'
Number of bytes read: 31

This confirms that the adapter can send a GPIB command to the instrument and receive its response.

Enter q to exit ibtest.

1-2. Useful HP 34401A Commands for ibtest

For example, a DC-voltage measurement can be performed as follows:

w, MEAS:VOLT:AC?, r, 100  ---> -4.83986000E-04
w, MEAS:RES?,     r, 100  ---> +1.00052360E+06
w, CONF:VOLT:DC, w, READ?, r, 100 ---> -7.02526000E-04
w, READ?, r, 100 ---> -5.60173000E-04
w, READ?, r, 100 ---> -5.28759000E-04
w, READ?, r, 100 ---> -4.95879000E-04

2. Test Communication with ibterm

ibterm is another Linux-GPIB utility for communicating interactively with a GPIB instrument. It is more convenient than ibtest when you simply want to type instrument commands and view the responses.

Start ibterm with the GPIB address of the instrument:

ibterm -d 13

where 13 is the GPIB address of the HP 34401A.

A typical startup message is:

Attempting to open /dev/gpib0
pad = 13, sad = 0, timeout = 10, send_eoi = 1, eos_mode = 0x0000

Commands can then be entered directly:

ibterm> *IDN?
HEWLETT-PACKARD,34401A,0,7-5-2

ibterm> MEAS:VOLT:DC?
+4.68678000E-04

ibterm> MEAS:VOLT:AC?
+1.88880200E-03

ibterm> MEAS:RES?
+5.25072420E+05

At this point, basic GPIB communication has been verified using the Linux-GPIB utilities. The next section tests GPIB communication using Python and PyVISA.

Test with Python and PyVISA

1. Test GPIB Interactively with Python

Before creating a Python script, communication can be checked directly from the Python interactive prompt.

Start Python:

python3

At the >>> prompt, enter or paste:

import pyvisa
rm = pyvisa.ResourceManager()
inst = rm.open_resource("GPIB0::13::INSTR")
print(inst.query("*IDN?"))
inst.close()
rm.close()

For the HP 34401A used in this example, the response is:

HEWLETT-PACKARD,34401A,0,7-5-2

This confirms that PyVISA can communicate with the instrument through Linux-GPIB.

To leave the Python interactive mode:

quit()

2. Python CLI Application for One HP 34401A

This first program reads the instrument ID and then measures DC voltage five times.

2-1. File

File name: dmm1-cli.py

The example programs are available from:

https://github.com/moriyasum/GPIB

✎ Change the GPIB address to match your instrument.

2-2. Run the Program

python3 ./dmm1-cli.py

2-3. Example Output

Interface:  GPIB0 , GPIB address:  13
Instrument ID:  HEWLETT-PACKARD,34401A,0,7-5-2
0 DC Voltage = +3.65830000E-05 V
1 DC Voltage = +5.06870000E-05 V
2 DC Voltage = +4.25880000E-05 V
3 DC Voltage = +5.31860000E-05 V
4 DC Voltage = +4.21300000E-05 V

2-4. Python Source Code

import pyvisa
import time

# GPIB address and interface number
adr = "13"
interface = "GPIB0"

# Open VISA
rm = pyvisa.ResourceManager()
dmm = rm.open_resource(f"{interface}::{adr}::INSTR")
dmm.timeout = 5000

# Read instrument ID
print("Interface: ", interface, ", GPIB address: ", adr)
print("Instrument ID: ", dmm.query("*IDN?").strip())

for i in range(5):
    # Configure the DMM for DC voltage measurement
    dmm.write("CONF:VOLT:DC")

    # Take a measurement
    value = dmm.query("READ?")
    print(i, "DC Voltage =", value.strip(), "V")

    time.sleep(2)

# Close the instrument and Resource Manager
dmm.close()
rm.close()

The VISA resource string is constructed with an f-string:

f"{interface}::{adr}::INSTR"

With interface = "GPIB0" and adr = "13", this becomes:

GPIB0::13::INSTR

3. Simple Python GUI Application for One HP 34401A

The next example adds a small Tkinter GUI. It displays the instrument ID, GPIB interface and address, measured DC voltage, and START / STOP / EXIT buttons.

3-1. File

File name: dmm1-gui.py

Download location:

https://github.com/moriyasum/GPIB

✎ Change the GPIB address to match your instrument.

3-2. Run the Program

Install Tkinter for the GUI:

sudo apt install python3-tk

Run program:

python3 ./dmm1-gui.py

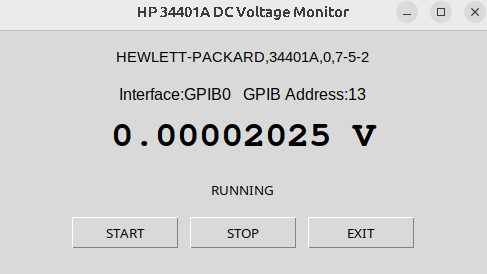

3-3. Example GUI

3-4. Python Source Code

import tkinter as tk
import pyvisa

# GPIB address and interface number
adr = "13"
interface = "GPIB0"

# Open VISA
rm = pyvisa.ResourceManager()
dmm = rm.open_resource(f"{interface}::{adr}::INSTR")
dmm.timeout = 5000

# Read instrument ID
idn = dmm.query("*IDN?").strip()

# Configure DC voltage measurement mode
dmm.write("CONF:VOLT:DC")

# GUI
root = tk.Tk()
root.title("HP 34401A DC Voltage Monitor")
root.geometry("500x250")

running = False

voltage_text = tk.StringVar(value="-------- V")
status_text = tk.StringVar(value="STOPPED")


def measure():
    if not running:
        return

    try:
        voltage = float(dmm.query("READ?"))
        voltage_text.set(f"{voltage:.8f} V")
        status_text.set("RUNNING")
    except Exception as e:
        status_text.set("ERROR: " + str(e))

    if running:
        root.after(500, measure)


def start():
    global running

    if not running:
        running = True
        measure()


def stop():
    global running

    running = False
    status_text.set("STOPPED")


def close():
    dmm.close()
    rm.close()
    root.destroy()


tk.Label(
    root,
    text=idn,
    font=("Arial", 11)
).pack(pady=15)

tk.Label(
    root,
    text=f"Interface:{interface}   GPIB Address:{adr}",
    font=("Arial", 12)
).pack()

tk.Label(
    root,
    textvariable=voltage_text,
    font=("Courier", 28, "bold")
).pack(pady=15)

tk.Label(
    root,
    textvariable=status_text
).pack()

button_frame = tk.Frame(root)
button_frame.pack(pady=15)

tk.Button(
    button_frame,
    text="START",
    command=start,
    width=10
).pack(side="left", padx=5)

tk.Button(
    button_frame,
    text="STOP",
    command=stop,
    width=10
).pack(side="left", padx=5)

tk.Button(
    button_frame,
    text="EXIT",
    command=close,
    width=10
).pack(side="left", padx=5)

root.protocol("WM_DELETE_WINDOW", close)

root.mainloop()

4. Python CLI Application for Three HP 34401A Multimeters

The next example controls three HP 34401A multimeters connected to the same GPIB bus.

The GPIB addresses used in this example are:

• DMM 1: address 11
• DMM 2: address 12
• DMM 3: address 13

4-1. File

File name: dmm3-cli.py

Download location:

https://github.com/moriyasum/GPIB

✎ Change the GPIB address to match your instrument.

4-2. Run the Program

python3 ./dmm3-cli.py

4-3. Example Output

Interface:GPIB0
Instrument 1: Addr=11  HEWLETT-PACKARD,34401A,0,4-1-1
Instrument 2: Addr=12  HEWLETT-PACKARD,34401A,0,5-1-1
Instrument 3: Addr=13  HEWLETT-PACKARD,34401A,0,7-5-2
0 DC Volt: 11= +1.87790000E-05 V, 12= +2.36160000E-05 V, 13= +5.30810000E-05 V
1 DC Volt: 11= +2.15320000E-05 V, 12= +2.77230000E-05 V, 13= +5.66400000E-05 V
2 DC Volt: 11= +2.97650000E-05 V, 12= +3.68070000E-05 V, 13= +4.06650000E-05 V

4-4. Python Source Code

import pyvisa
import time

# GPIB addresses and interface number
adr1 = "11"
adr2 = "12"
adr3 = "13"
interface = "GPIB0"

# Open VISA
rm = pyvisa.ResourceManager()

dmm1 = rm.open_resource(f"{interface}::{adr1}::INSTR")
dmm1.timeout = 5000

dmm2 = rm.open_resource(f"{interface}::{adr2}::INSTR")
dmm2.timeout = 5000

dmm3 = rm.open_resource(f"{interface}::{adr3}::INSTR")
dmm3.timeout = 5000

print(f"Interface:{interface}")

# Read instrument IDs
print(f"Instrument 1: Addr={adr1} ", dmm1.query("*IDN?").strip())
print(f"Instrument 2: Addr={adr2} ", dmm2.query("*IDN?").strip())
print(f"Instrument 3: Addr={adr3} ", dmm3.query("*IDN?").strip())

# Configure all three DMMs for DC voltage measurement
dmm1.write("CONF:VOLT:DC")
dmm2.write("CONF:VOLT:DC")
dmm3.write("CONF:VOLT:DC")

for i in range(10):
    value = dmm1.query("READ?")
    print(i, "DC Volt:", adr1 + "=", value.strip(), "V, ", end="")

    value = dmm2.query("READ?")
    print(adr2 + "=", value.strip(), "V, ", end="")

    value = dmm3.query("READ?")
    print(adr3 + "=", value.strip(), "V")

    time.sleep(0.5)

# Close the instruments and Resource Manager
dmm1.close()
dmm2.close()
dmm3.close()
rm.close()

5. Python GUI Data Logger for Three HP 34401A Multimeters

The final Python example expands the three-instrument program into a GUI data logger with real-time display, graphing, and recording.

5-1. File

File name: dmm3-gui-graph-record.py

The full source code is available here:

https://github.com/moriyasum/GPIB/blob/main/dmm3-gui-graph-record.py

✎ Change the GPIB address to match your instrument.

5-2. Run the Program

Install Tkinter for the GUI:

sudo apt install python3-tk

Install Matplotlib for graphing:

sudo apt install python3-matplotlib

Run program:

python3 ./dmm3-gui-graph-record.py

5-3. Example GUI

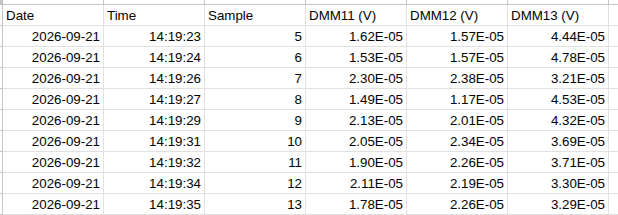

Example of a recorded data file:

5-4. Python Source Code

Because this program is considerably longer than the previous examples, the complete source code is maintained on GitHub rather than duplicated here:

https://github.com/moriyasum/GPIB/blob/main/dmm3-gui-graph-record.py

The progression of the examples is therefore:

interactive Python → one-DMM CLI → one-DMM GUI →
three-DMM CLI → three-DMM GUI/data logger

This makes it possible to verify each layer of the system before moving to the next one.

USB Connection and Detection Test with Three HP 34401A Multimeters

After confirming operation with the three-DMM Python program, I also tested the NI GPIB-USB-HS with different USB ports on the Intel NUC13ANK.

In these tests, the adapter was detected and communication with the three HP 34401A multimeters worked in all of the connection methods shown above.

Ground-Potential Difference Observed in My Test Setup

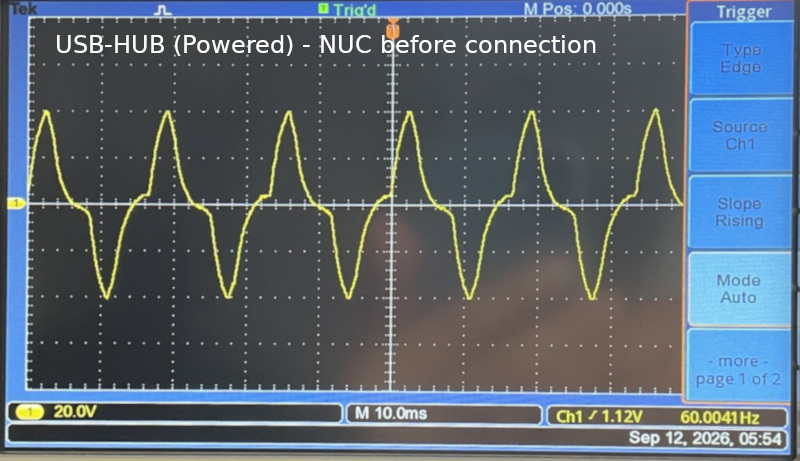

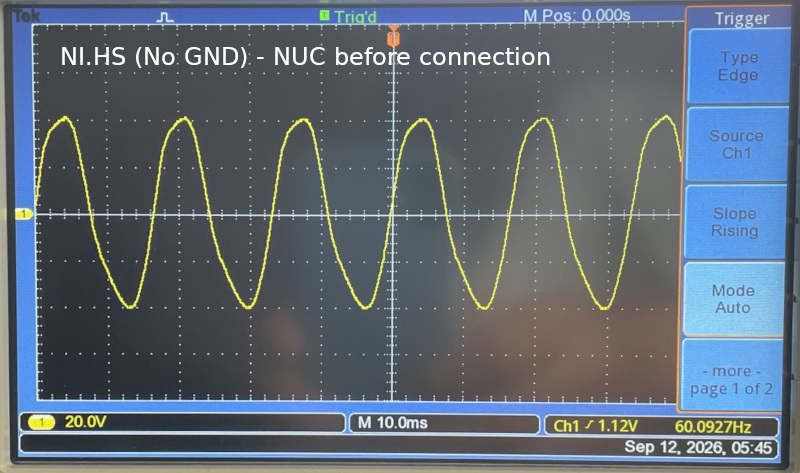

Further investigation showed a substantial AC potential difference between the NUC chassis/USB ground and the measurement-equipment chassis in my particular setup.
This malfunction caused by the electrical transient during connection occurred only on the NUC in this experiment and did not occur on the Envy or EliteDesk systems.

A powered USB hub did not eliminate the issue in this setup.

In my test setup, after confirming that the chassis/ground points could be safely connected, equalizing their potentials eliminated the USB-connection problem.

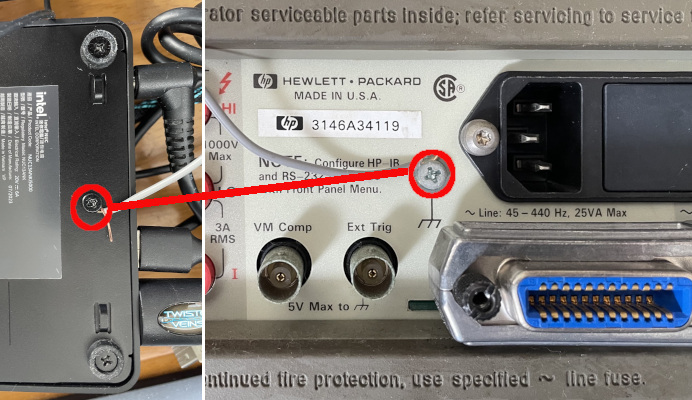

Ground/chassis connection used in this test setup:

The important point from this test is that the USB/GPIB software itself was not the only possible cause of connection instability. In this particular setup, an electrical potential difference between the connected equipment was associated with the USB hot-plug symptoms.

NI GPIB-USB-HS Driver Patch Details

This section provides the patch used with the particular NI GPIB-USB-HS adapter tested in this guide.

The installation procedure for applying this patch is described earlier in Section 5, Apply the Special Patch for the NI GPIB-USB-HS.

Driver source file:

ni_usb_gpib.c

Driver source directory:

/opt/linux-gpib-4.3.7/linux-gpib-kernel-4.3.7/drivers/gpib/ni_usb

Patch file:

ni_usb_gpib_709b_linux-gpib-4.3.7.patch

Patch file location used in this guide:

~/Downloads/ni_usb_gpib_709b_linux-gpib-4.3.7.patch

The same patch file is also available from GitHub:

https://github.com/moriyasum/GPIB/blob/main/ni_usb_gpib_709b_linux-gpib-4.3.7.patch

Patch File

The following is the complete patch used in this guide:

--- a/drivers/gpib/ni_usb/ni_usb_gpib.c
+++ b/drivers/gpib/ni_usb/ni_usb_gpib.c
@@ -479,6 +479,18 @@
 			       i - 1, (int)raw_data[i - 1]);
 			unexpected = 1;
 		}
+
+	/*
+	 * NI GPIB-USB-HS (3923:709b) may omit the register-write status
+	 * block here and proceed directly to the termination block.
+	 */
+	if (raw_data[i] == NIUSB_TERM_ID) {
+		i += ni_usb_parse_termination_block(&raw_data[i]);
+		if (unexpected)
+			ni_usb_dump_raw_block(raw_data, i);
+		return i;
+	}
+
 	i += ni_usb_parse_status_block(&raw_data[i], &register_write_status);
 	if (register_write_status.id != NIUSB_REG_WRITE_ID) {
 		pr_err("unexpected data: register write status id=0x%x, expected 0x%x\n",
@@ -1015,6 +1027,14 @@
 	int i = 0;
 	struct ni_usb_status_block status;

+	/*
+	 * On 3923:709b, sending NIUSB_IBGTS (0x06) after GPIB addressing
+	 * causes the following data write to fail with NIUSB_ADDRESSING_ERROR.
+	 * Keeping the adapter in its current state allows the write to succeed.
+	 */
+	if (ni_priv->product_id == USB_DEVICE_ID_NI_USB_HS)
+		return 0;
+
 	if (!ni_priv->bus_interface)
 		return -ENODEV;
 	usb_dev = interface_to_usbdev(ni_priv->bus_interface);
@@ -1853,11 +1873,21 @@
 {
 	int retval;
 	struct ni_usb_priv *ni_priv = board->private_data;
-	struct usb_device *usb_dev = interface_to_usbdev(ni_priv->bus_interface);
+	struct usb_device *usb_dev;
 	static const int buffer_length = 8;
 	u8 *buffer;
 	struct ni_usb_status_block status;
 	unsigned long flags;
+
+	/*
+	 * NI GPIB-USB-HS (3923:709b) does not tolerate the interrupt-monitor
+	 * control request used by this driver during initialization.
+	 * Normal GPIB transfers work through the bulk endpoints without it.
+	 */
+	if (ni_priv->product_id == USB_DEVICE_ID_NI_USB_HS)
+		return 0;
+
+	usb_dev = interface_to_usbdev(ni_priv->bus_interface);

 	buffer = kmalloc(buffer_length, GFP_KERNEL);
 	if (!buffer)
@@ -1886,6 +1916,13 @@
 	struct usb_device *usb_dev;
 	int int_pipe;
 	int retval;
+
+	/*
+	 * The 3923:709b compatibility path uses synchronous bulk transfers
+	 * only; do not start the interrupt endpoint.
+	 */
+	if (ni_priv->product_id == USB_DEVICE_ID_NI_USB_HS)
+		return 0;

 	if (ni_priv->interrupt_in_endpoint < 0)
 		return 0;

Conclusion

The NI GPIB-USB-HS used in this project was successfully operated on Ubuntu with Linux-GPIB 4.3.7 after applying the adapter-specific patch described in this guide.

Communication was verified with Linux-GPIB utilities, PyVISA, and Python programs using one and three HP 34401A multimeters. The three-instrument GUI/data-logger example also demonstrated continuous measurements through the same GPIB interface.

Because the patch and some of the observed USB behavior are specific to the hardware and test environment used here, they should be treated as test results from this setup rather than as requirements for every NI GPIB-USB-HS.
