OpenAL Ada App openal_info #1 Using Alire and GnatStudio

A basic application to run first after installing OpenAL.
The Coreland OpenAL package includes openal_info.ads and openal_info.adb with a simple application.
By confirming its operation, you can verify that OpenAL has been installed correctly.

Date: Aug 18 2025

Confirmed versions:
Ubuntu: 24.04.3 LTS, Gnat: 13.3.0
PC: OMEN 17-ck2095cl, i9-13900HX, RTX-4080

Application Output

Make the project with Alire command

~/ada/oal$ alr init al_info –bin

Alire needs some user information to initialize the crate author and maintainer,
for eventual submission to the Alire community index. This information will be
interactively requested now.

You can edit this information at any time with 'alr config'

Enter a short description of the crate: (default: '')
> Enter
Using default: ''
Please enter your email address: (default: 'example@example.com')
> Enter
Using default: 'example@example.com'
Select a software license for the crate?
  1. MIT OR Apache-2.0 WITH LLVM-exception
  2. MIT
  3. Apache-2.0 WITH LLVM-exception
  4. Apache-2.0
  5. BSD-3-Clause
  6. LGPL-3.0-or-later
  7. GPL-3.0-or-later WITH GCC-exception-3.1
  8. GPL-3.0-or-later
  9. Other...
Enter your choice index (first is default):
> Enter
Enter a comma (',') separated list of tags to help people find your crate: (default: '')
> Enter
Using default: ''
Enter an optional Website URL for the crate: (default: '')
> Enter
Using default: ''
✓ al_info initialized successfully.

~/ada/oal$ cd al_info

~/ada/oal/al_info$ alr edit

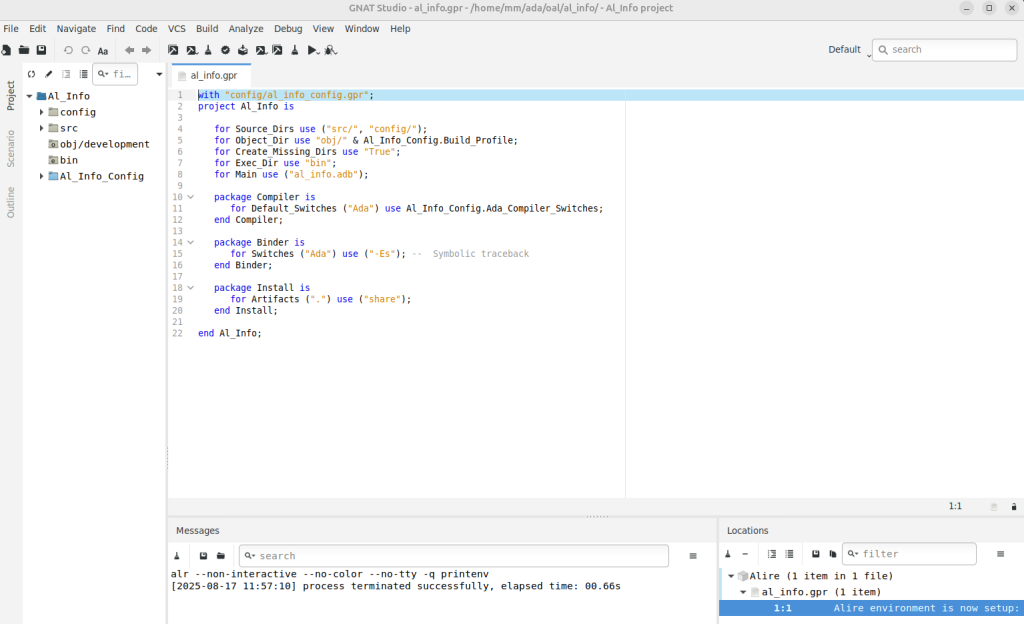

GnatStudio

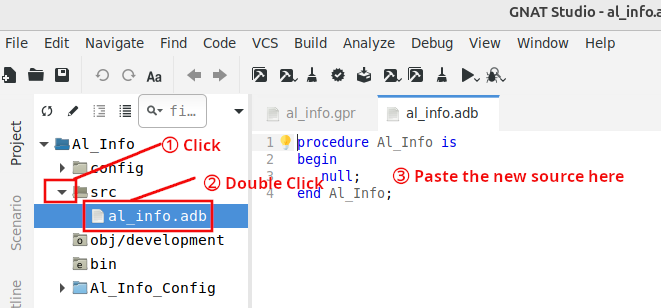

Display the default source and update (#1 and #2)

This application is based on openal_info_main.adb in the OpenAL files.

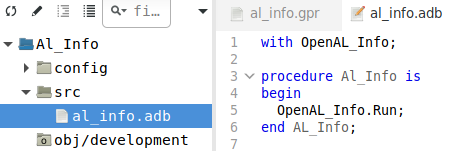

Source code: src/al_info.adb

with OpenAL_Info;

procedure Al_Info is
begin
   OpenAL_Info.Run;
end Al_Info;

Note:
When creating applications in GnatStudio, indentation must use 3 spaces. Since OpenAL uses 2 spaces consistently, numerous warnings will be displayed for OpenAL files when building the application for the first time, but these can be ignored. From the second build onward, those warnings will not be displayed.

Also, you must insert 2 spaces after — (dash, dash, space, space which represents comments), otherwise an error will occur.

Create the following text file in the working directory

./sourcefiles.txt

al_info.adb
openal.ads
openal-alc_thin.ads
openal-buffer.adb
openal-buffer.ads
openal-context.adb
openal-context.ads
openal-context-capture.adb
openal-context-capture.ads
openal-context-error.adb
openal-context-error.ads
openal-error.adb
openal-error.ads
openal-extension.ads
openal-extension-efx.adb
openal-extension-efx.ads
openal-extension-efx_thin.adb
openal-extension-efx_thin.ads
openal-extension-float32.adb
openal-extension-float32.ads
openal-extension-float32_thin.ads
openal-global.adb
openal-global.ads
openal_info.adb
openal_info.ads
openal_info_main.adb
openal-list.adb
openal-list.ads
openal-listener.adb
openal-listener.ads
openal-load.adb
openal-load.ads
openal-source.adb
openal-source.ads
openal-thin.ads
openal-types.ads

NOTE: The top line is this application and project file name.

Edit project file: al_info.gpr with GnatStudio Wizard

Press “Edit” – ”Project Properties”
Setup OpenAL source files directory
“Directories” – “+” – “navigate usr” – “local” – “include” – “coreland” – “openal-ada” – “OK”

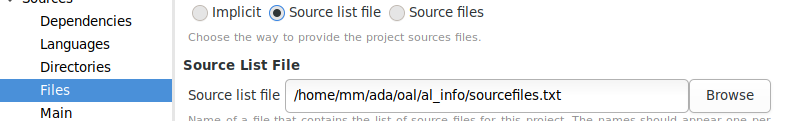

Press “source list file” Radio button
“Browse” – choose “sourcefiles.txt” which you created – “OK”

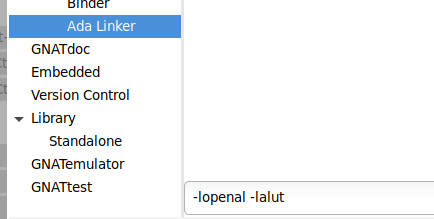

“Build”—”Switches”—”Ada Linker” tab: Enter this line into the bottom rectangular box.

-lopenal -lalut

“Save” to close the properties window.
Press “Reload”.

New project file: ./al_info.gpr was created:

with "config/al_info_config.gpr";

project Al_Info is

   for Source_Dirs use ("src", "config", "../../../../../usr/local/include/coreland/openal-ada");
   for Object_Dir use "obj/" & Al_Info_Config.Build_Profile;
   for Create_Missing_Dirs use "True";
   for Exec_Dir use "bin";
   for Main use ("al_info.adb");

   package Compiler is
      for Default_Switches ("ada") use Al_Info_Config.Ada_Compiler_Switches;
   end Compiler;

   package Binder is
      for Switches ("Ada") use ("-Es"); --  Symbolic traceback
   end Binder;

   package Install is
      for Artifacts (".") use ("share");
   end Install;

   for Source_List_File use "../sample1_device_list/sourcefiles.txt";

   package Linker is
      for Switches ("ada") use ("-lopenal", "-lalut");
   end Linker;

end Al_Info;

Build Al_Info project

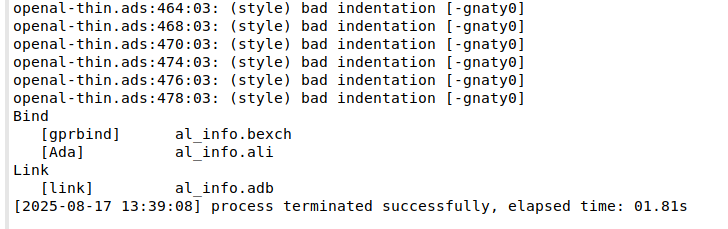

Build result message:

Many warnings will be displayed, but if [link] al_info.adb appears on the last line as shown below, the build is successful.

Build command just for reference:

gprbuild -d -P/home/mm/ada/oal/al_info/al_info.gpr -XADAFLAGS=
Compile
   [Ada]          al_info.adb
Bind
   [gprbind]      al_info.bexch
   [Ada]          al_info.ali
Link
   [link]         al_info.adb
[2025-08-17 13:51:21] process terminated successfully, elapsed time: 00.49s

Execution file was created in bin/ directory

Execution

The resulting executable file is created in the bin directory.

Executable file:
~/ada/oal/al_info/bin$ ls -al

total 2184
drwxrwxr-x 2 mm mm    4096 Aug 17 13:51 .
drwxrwxr-x 8 mm mm    4096 Aug 17 13:33 ..
-rwxrwxr-x 1 mm mm 2228144 Aug 17 13:51 al_info

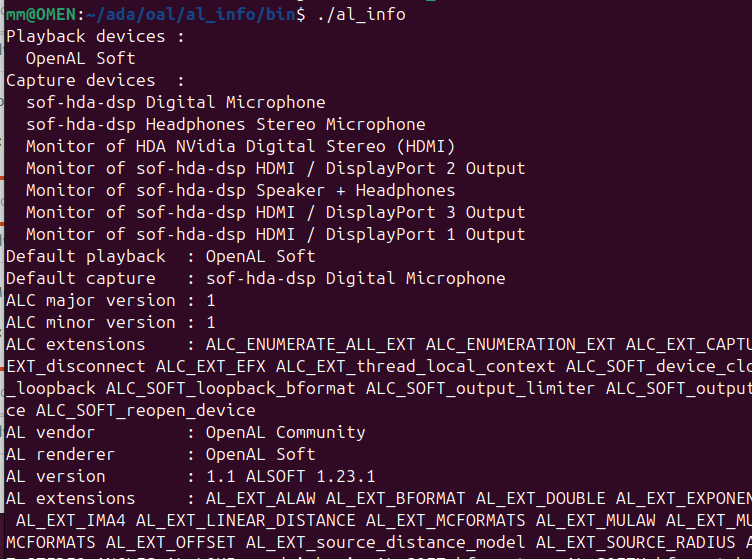

When running, the following messages are displayed in my environment:

/home/mm/ada/oal/al_info/bin/al_info
Playback devices :
  OpenAL Soft
Capture devices  :
  sof-hda-dsp Digital Microphone
  sof-hda-dsp Headphones Stereo Microphone
  Monitor of HDA NVidia Digital Stereo (HDMI)
  Monitor of sof-hda-dsp Speaker + Headphones
  Monitor of sof-hda-dsp HDMI / DisplayPort 2 Output
  Monitor of sof-hda-dsp HDMI / DisplayPort 1 Output
  Monitor of sof-hda-dsp HDMI / DisplayPort 3 Output
Default playback  : OpenAL Soft
Default capture   : sof-hda-dsp Digital Microphone
ALC major version : 1
ALC minor version : 1
ALC extensions    : ALC_ENUMERATE_ALL_EXT ALC_ENUMERATION_EXT ALC_EXT_CAPTURE ALC_EXT_DEDICATED ALC_EXT_disconnect ALC_EXT_EFX ALC_EXT_thread_local_context ALC_SOFT_device_clock ALC_SOFT_HRTF ALC_SOFT_loopback ALC_SOFT_loopback_bformat ALC_SOFT_output_limiter ALC_SOFT_output_mode ALC_SOFT_pause_device ALC_SOFT_reopen_device
AL vendor         : OpenAL Community
AL renderer       : OpenAL Soft
AL version        : 1.1 ALSOFT 1.23.1
AL extensions     : AL_EXT_ALAW AL_EXT_BFORMAT AL_EXT_DOUBLE AL_EXT_EXPONENT_DISTANCE AL_EXT_FLOAT32 AL_EXT_IMA4 AL_EXT_LINEAR_DISTANCE AL_EXT_MCFORMATS AL_EXT_MULAW AL_EXT_MULAW_BFORMAT AL_EXT_MULAW_MCFORMATS AL_EXT_OFFSET AL_EXT_source_distance_model AL_EXT_SOURCE_RADIUS AL_EXT_STATIC_BUFFER AL_EXT_STEREO_ANGLES AL_LOKI_quadriphonic AL_SOFT_bformat_ex AL_SOFTX_bformat_hoa AL_SOFT_block_alignment AL_SOFT_buffer_length_query AL_SOFT_callback_buffer AL_SOFTX_convolution_reverb AL_SOFT_deferred_upd
ates AL_SOFT_direct_channels AL_SOFT_direct_channels_remix AL_SOFT_effect_target AL_SOFT_events AL_SOFT_gain_clamp_ex AL_SOFTX_hold_on_disconnect AL_SOFT_loop_points AL_SOFTX_map_buffer AL_SOFT_MSADPCM AL_SOFT_source_latency AL_SOFT_source_length AL_SOFT_source_resampler AL_SOFT_source_spatialize AL_SOFT_source_start_delay AL_SOFT_UHJ AL_SOFT_UHJ_ex
[2025-08-17 14:04:27] process terminated successfully, elapsed time: 00.30s

Note:

This application is based on openal_info_main.adb in the OpenAL files.

The messagea are displayed in the following order based on the results of “Procedure Run” in openal_info.adb.

procedure Run is
  begin
    Init;
    List_Playback_Devices;
    List_Capture_Devices;
    Defaults;
    Open_Device;
    Versions;
    Finish;

This is the list of openal_info for reference:

https://github.com/io7m/coreland-openal-ada

https://github.com/io7m/coreland-openal-ada/blob/master/openal_info.ads

https://github.com/io7m/coreland-openal-ada/blob/master/openal_info.adb

File: openal_info.adb

with Ada.Command_Line;
with Ada.Exceptions;
with Ada.Text_IO;
with OpenAL.Context;
with OpenAL.Global;
with OpenAL.List;

package body OpenAL_Info is
  package AL_Context        renames OpenAL.Context;
  package AL_Global         renames OpenAL.Global;
  package AL_String_Vectors renames OpenAL.List.String_Vectors;
  package Command_Line      renames Ada.Command_Line;
  package Exceptions        renames Ada.Exceptions;
  package Natural_IO        is new  Ada.Text_IO.Integer_IO (Natural);
  package Text_IO           renames Ada.Text_IO;

  Device  : AL_Context.Device_t;
  Context : AL_Context.Context_t;
  Error   : exception;

  use type AL_Context.Device_t;
  use type AL_Context.Context_t;

  procedure Versions;

  --
  -- Defaults.
  --

  procedure Defaults is
  begin
    Text_IO.Put ("Default playback  : ");
    Text_IO.Put (AL_Context.Get_Default_Device_Specifier);
    Text_IO.New_Line;

    Text_IO.Put ("Default capture   : ");
    Text_IO.Put (AL_Context.Get_Default_Capture_Device_Specifier);
    Text_IO.New_Line;
  end Defaults;

  --
  -- Finish.
  --

  procedure Finish is
  begin
    AL_Context.Destroy_Context (Context);
    AL_Context.Close_Device (Device);
  end Finish;

  --
  -- Init.
  --

  procedure Init is
  begin
    Natural_IO.Default_Width := 0;
  end Init;

  --
  -- Capture devices.
  --

  procedure List_Capture_Devices is
    Devices : AL_String_Vectors.Vector;

    procedure Process_Element (Device : in String) is
    begin
      Text_IO.Put_Line ("  " & Device);
    end Process_Element;
  begin
    Text_IO.Put_Line ("Capture devices  :");

    Devices := AL_Context.Get_Available_Capture_Devices;

    for Index in AL_String_Vectors.First_Index (Devices) .. AL_String_Vectors.Last_Index (Devices) loop
      AL_String_Vectors.Query_Element (Devices, Index, Process_Element'Access);
    end loop;
  end List_Capture_Devices;

  --
  -- Playback devices.
  --

  procedure List_Playback_Devices is
    Devices : AL_String_Vectors.Vector;

    procedure Process_Element (Device : in String) is
    begin
      Text_IO.Put_Line ("  " & Device);
    end Process_Element;
  begin
    Text_IO.Put_Line ("Playback devices :");

    Devices := AL_Context.Get_Available_Playback_Devices;

    for Index in AL_String_Vectors.First_Index (Devices) .. AL_String_Vectors.Last_Index (Devices) loop
      AL_String_Vectors.Query_Element (Devices, Index, Process_Element'Access);
    end loop;
  end List_Playback_Devices;

  --
  -- Open_Device.
  --

  procedure Open_Device is
  begin
    Command_Line.Set_Exit_Status (Command_Line.Failure);

    Device := AL_Context.Open_Default_Device;
    if Device /= AL_Context.Invalid_Device then
      Context := AL_Context.Create_Context (Device);
      if Context /= AL_Context.Invalid_Context then
        if AL_Context.Make_Context_Current (Context) = False then
          raise Error with "error making context current";
        else
          Command_Line.Set_Exit_Status (Command_Line.Success);
        end if;
      else
        raise Error with "error creating context";
      end if;
    else
      raise Error with "error opening device";
    end if;
  end Open_Device;

  --
  -- Entry point.
  --

  procedure Run is
  begin
    Init;
    List_Playback_Devices;
    List_Capture_Devices;
    Defaults;
    Open_Device;
    Versions;
    Finish;
  exception
    when E : Error =>
      Text_IO.Put_Line
        (File => Text_IO.Current_Error,
         Item => "fatal: " & Exceptions.Exception_Message (E));
  end Run;

  --
  -- Versions.
  --

  procedure Versions is
  begin
    Text_IO.Put ("ALC major version : ");
    Natural_IO.Put (AL_Context.Get_Major_Version (Device));
    Text_IO.New_Line;

    Text_IO.Put ("ALC minor version : ");
    Natural_IO.Put (AL_Context.Get_Minor_Version (Device));
    Text_IO.New_Line;

    Text_IO.Put ("ALC extensions    : ");
    Text_IO.Put (AL_Context.Get_Extensions (Device));
    Text_IO.New_Line;

    Text_IO.Put ("AL vendor         : ");
    Text_IO.Put (AL_Global.Vendor);
    Text_IO.New_Line;

    Text_IO.Put ("AL renderer       : ");
    Text_IO.Put (AL_Global.Renderer);
    Text_IO.New_Line;

    Text_IO.Put ("AL version        : ");
    Text_IO.Put (AL_Global.Version);
    Text_IO.New_Line;

    Text_IO.Put ("AL extensions     : ");
    Text_IO.Put (AL_Global.Extensions);
    Text_IO.New_Line;
  end Versions;

end OpenAL_Info;
