OpenAL-Ada CLI Recording WAV File
Implementation with Alire and GnatStudio Environment
Ada application
Playback WAV file, support JUNK chunk.
File size should be less than 7.8MByte.
Date: July 19 2025Confirmed versions:
Ubuntu: 24.04.2 LTS, Gnat: 14.2.1, Gtkada:25.0.1
PC: OMEN 17-ck2095cl, i9-13900HX, RTX-4080
OpenAL 1.1.1 was installed
The source code and project files are available on GitHub

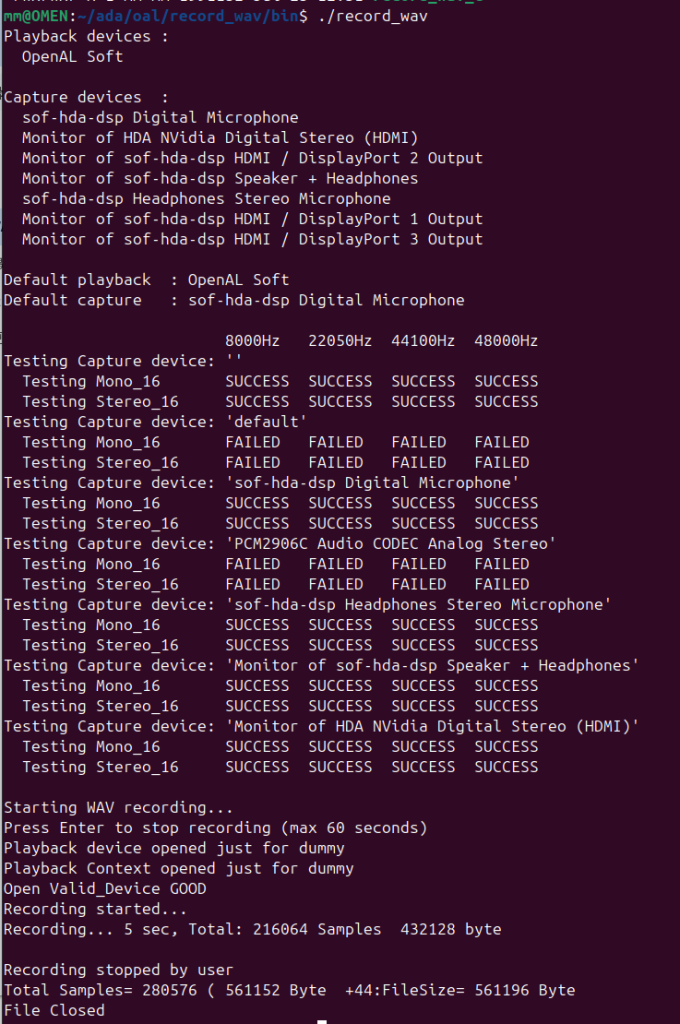

Application screen when recording and after
Setup Build Space “record_wav”
~/ada/oal$ alr init record_wav –bin
Alire needs some user information to initialize the crate author and maintainer,
for eventual submission to the Alire community index. This information will be
interactively requested now.
You can edit this information at any time with 'alr config'
Enter a short description of the crate: (default: '')
> Enter
Using default: ''
Please enter your email address: (default: 'example@example.com')
> Enter
Using default: 'example@example.com'
Select a software license for the crate?
1. MIT OR Apache-2.0 WITH LLVM-exception
2. MIT
3. Apache-2.0 WITH LLVM-exception
4. Apache-2.0
5. BSD-3-Clause
6. LGPL-3.0-or-later
7. GPL-3.0-or-later WITH GCC-exception-3.1
8. GPL-3.0-or-later
9. Other...
Enter your choice index (first is default):
> Enter
Enter a comma (',') separated list of tags to help people find your crate: (default: '')
> Enter
Using default: ''
Enter an optional Website URL for the crate: (default: '')
> Enter
Using default: ''
✓ record_wav initialized successfully.
~/ada/oal$ cd record_wav
~/ada/oal/record_wav$ ls -al
total 36
drwxrwxr-x 6 mm mm 4096 Jul 14 13:04 .
drwxrwxr-x 7 mm mm 4096 Jul 14 13:04 ..
drwxrwxr-x 2 mm mm 4096 Jul 14 13:04 alire
-rw-rw-r-- 1 mm mm 261 Jul 14 13:04 alire.toml
drwxrwxr-x 2 mm mm 4096 Jul 14 13:04 config
-rw-rw-r-- 1 mm mm 29 Jul 14 13:04 .gitignore
-rw-rw-r-- 1 mm mm 588 Jul 14 13:04 record_wav.gpr
drwxrwxr-x 3 mm mm 4096 Jul 14 13:04 share
drwxrwxr-x 2 mm mm 4096 Jul 14 13:04 src
Setup Source file list for
~/ada/oal/record_wav$ gedit sourcefiles.txt
NOTE: The first file name is project-specific – modify it for your project.
All other files are common OpenAL library files (do not change).
record_wav.adb
openal.ads
openal-alc_thin.ads
openal-buffer.adb
openal-buffer.ads
openal-context.adb
openal-context.ads
openal-context-capture.adb
openal-context-capture.ads
openal-context-error.adb
openal-context-error.ads
openal-error.adb
openal-error.ads
openal-extension.ads
openal-extension-efx.adb
openal-extension-efx.ads
openal-extension-efx_thin.adb
openal-extension-efx_thin.ads
openal-extension-float32.adb
openal-extension-float32.ads
openal-extension-float32_thin.ads
openal-global.adb
openal-global.ads
openal_info.adb
openal_info.ads
openal_info_main.adb
openal-list.adb
openal-list.ads
openal-listener.adb
openal-listener.ads
openal-load.adb
openal-load.ads
openal-source.adb
openal-source.ads
openal-thin.ads
openal-types.ads

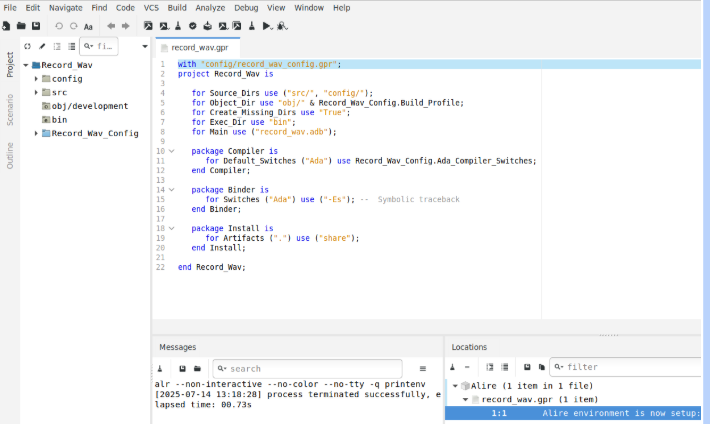

Startup GnatStudio with Alire
Setup Environment with GnatStudio
~/ada/oal/record_wav$ alr edit
Setup Environment with GnatStudio
Edit – ”Project Properties”
Sources – Directories – press “+”
Browse: Other Locations – Computer – usr – local – include – coreland – openal-ada “OK”
Sources—Files tab:
Choose “Source list file”, “Browse”, choose “sourcefiles.text” in the “play_wav” directory and “OK”.
Build—Switches—”Ada Linker” tab:
Enter this line into the bottom rectangular box.
-lopenal -lalut
“Save” to close the Project-Properties window.
Press “Reload”
Project file was created automatically.
file record_wav.gpr
with "config/record_wav_config.gpr";
project Record_Wav is
for Source_Dirs use ("src", "config", "../../../../../usr/local/include/coreland/openal-ada");
for Object_Dir use "obj/" & Record_Wav_Config.Build_Profile;
for Create_Missing_Dirs use "True";
for Exec_Dir use "bin";
for Main use ("record_wav.adb");
for Source_List_File use "sourcefiles.txt";
package Compiler is
for Default_Switches ("ada") use ("-Og", "-ffunction-sections", "-fdata-sections", "-g", "-gnatW8", "-gnatVa", "-gnatwa.X", "-gnatyaABbc-defhiIklM79nOprStux");
end Compiler;
package Binder is
for Switches ("Ada") use ("-Es"); -- Symbolic traceback
end Binder;
package Install is
for Artifacts (".") use ("share");
end Install;
package Linker is
for Switches ("ada") use ("-lopenal", "-lalut");
end Linker;
end Record_Wav;Browse and double click the file “record_wav.adb”
Delete the default code and copy the new code:
Build Al_Info project
Execution
Created WAV file location
The directory where the WAV file is created depends on the execution environment.
Running from GnatStudio: record_wav/”rec-1ch-48000-16b.wav” (project root)
Running from Terminal: record_wav/bin/r”rec-1ch-48000-16b.wav”.wav
Running Screen Messages
Recording WAV file details using ffprobe command
Input #0, wav, from 'rec-1ch-48000-16b.wav':
Duration: 00:00:05.85, bitrate: 768 kb/s
Stream #0:0: Audio: pcm_s16le ([1][0][0][0] / 0x0001), 48000 Hz, 1 channels, s16, 768 kb/s
Source file: record_wav.adb
with Ada.Text_IO; use Ada.Text_IO;
with Ada.Real_Time; use Ada.Real_Time;
with Ada.Characters.Latin_1; use Ada.Characters.Latin_1;
with Ada.Streams.Stream_IO;
with Interfaces; use Interfaces; -- for unsigned_16,32
with Ada.Characters;
with Ada.Exceptions; use Ada.Exceptions;
with Ada.Strings.Unbounded; use Ada.Strings.Unbounded;
with Ada.Strings.Unbounded.Text_IO; use Ada.Strings.Unbounded.Text_IO;
with OpenAL; use OpenAL;
with OpenAL.Context; use OpenAL.Context;
with OpenAL.Context.Capture;
with OpenAL.Types; use OpenAL.Types;
with OpenAL.Buffer; use OpenAL.Buffer;
with OpenAL_Info; -- NOTE:Underline (not Dash)
procedure Record_WAV is
-- WAV header structure
type WAV_Header is record
ChunkID : String (1 .. 4); -- RIFF
ChunkSize : Unsigned_32;
Format : String (1 .. 4); -- WAVE
Subchunk1ID : String (1 .. 4); -- fmt(space)
Subchunk1Size : Unsigned_32;
AudioFormat : Unsigned_16;
NumChannels : Unsigned_16;
SampleRate : Unsigned_32;
ByteRate : Unsigned_32;
BlockAlign : Unsigned_16;
BitsPerSample : Unsigned_16;
Subchunk2ID : String (1 .. 4); -- data
Subchunk2Size : Unsigned_32;
end record;
--
--
-- Constants for recording
-- *****************************************************
SAMPLE_RATE : constant := 48000;
CHANNELS : constant := 1;
BITS_PER_SAMPLE : constant := 16; -- 16 bit
-- *****************************************************
BUFFER_SIZE : constant := 4096; -- 4K sample (8kByte)
MAX_SAMPLES : constant := 4096; -- Capture Samples (4kByte)
MAX_DURATION : constant Time_Span := To_Time_Span (60.0); -- Limited Time
LOOP_PERIOD : constant Time_Span := To_Time_Span (0.01); -- 10ms Cycle
-- Variables
Playback_Device_t : OpenAL.Context.Device_t;
Capture_Device_t : OpenAL.Context.Device_t;
PLB_Context_t : OpenAL.Context.Context_t;
Available_Samples : Natural;
Total_Samples : Unsigned_32 := 0;
Header : WAV_Header;
File_Handle : Ada.Streams.Stream_IO.File_Type;
Stream : Ada.Streams.Stream_IO.Stream_Access;
Start_Time : Ada.Real_Time.Time;
Next_Loop_Time : Ada.Real_Time.Time;
Last_Progress_Second : Integer := -1; -- Track last progress display
--
--
--
------------------------------------------------
-- Function to check if Enter key was pressed (non-blocking)
------------------------------------------------
function Key_Pressed return Boolean is
Available : Boolean;
C : Character;
begin
-- Check if input is available without blocking
Get_Immediate (C, Available);
if Available and then (C = CR or else C = LF) then
return True;
end if;
return False;
exception -- Insurance against any errors
when others =>
return False;
end Key_Pressed;
--
--
-----------------------------------------------------
-- All Capture Devices List
-----------------------------------------------------
procedure List_Capture_Device_List is
begin
--
OpenAL_Info.List_Playback_Devices;
Put_Line ("");
OpenAL_Info.List_Capture_Devices;
Put_Line ("");
OpenAL_Info.Defaults; -- WORKS
Put_Line ("");
-- Contents of "Run"
-- Init;
-- List_Playback_Devices;
-- List_Capture_Devices;
-- Defaults;
-- Open_Device;
-- Versions;
-- Finish;
--
end List_Capture_Device_List;
--
--
-----------------------------------------------------
-- All Capture Devices Test
-----------------------------------------------------
procedure Test_All_Formats is
type Unbounded_String_Array is
array (Positive range <>) of Unbounded_String;
type Format_Test is record
Format : OpenAL.Context.Format_t;
Name : String (1 .. 10);
end record;
Format_List : constant array (1 .. 2) of Format_Test := (
-- (Mono_8, "Mono_8 "),
(Mono_16, "Mono_16 "),
-- (Stereo_8, "Stereo_8 "),
(Stereo_16, "Stereo_16 ")
);
Sample_Rates :
constant array (1 .. 4) of Frequency_t := (8000, 22050, 44100, 48000);
Device_Name_List : constant Unbounded_String_Array (1 .. 7) :=
(To_Unbounded_String (""),
To_Unbounded_String ("default"),
To_Unbounded_String ("sof-hda-dsp Digital Microphone"),
To_Unbounded_String ("PCM2906C Audio CODEC Analog Stereo"),
To_Unbounded_String ("sof-hda-dsp Headphones Stereo Microphone"),
To_Unbounded_String ("Monitor of sof-hda-dsp Speaker + Headphones"),
To_Unbounded_String ("Monitor of HDA NVidia Digital Stereo (HDMI)")
);
--
begin
Put_Line (" 8000Hz 22050Hz 44100Hz 48000Hz");
for Device_Name of Device_Name_List loop
Put_Line ("Testing Capture device: '" & Device_Name & "'");
for Format_Info of Format_List loop
Put (" Testing " & Format_Info.Name & " ");
for Rate of Sample_Rates loop
begin
Capture_Device_t := OpenAL.Context.Capture.Open_Device
(Name => To_String (Device_Name), -- String
Frequency => Rate, -- Types.Frequency_t
Format => Format_Info.Format, -- Request_Format_t
Buffer_Size => BUFFER_SIZE); -- Buffer_Size_t
if Capture_Device_t /= OpenAL.Context.Invalid_Device then
Put ("SUCCESS ");
-- Simple capture test
OpenAL.Context.Capture.Start (Capture_Device_t);
delay 0.01; -- wait 10ms
Available_Samples :=
OpenAL.Context.Get_Capture_Samples (Capture_Device_t);
-- Put_Line (" Available samples: " &
-- Natural'Image (Available_Samples));
else
Put ("FAILED ");
end if;
OpenAL.Context.Capture.Stop (Capture_Device_t);
OpenAL.Context.Capture.Close_Device (Capture_Device_t);
delay 0.01; -- wait 10ms for dummy
exception
when Constraint_Error =>
Put_Line ("Constraint_Error-likely index range problem");
Put_Line (" Available samples: " &
Natural'Image (Available_Samples));
OpenAL.Context.Capture.Stop (Capture_Device_t);
OpenAL.Context.Capture.Close_Device (Capture_Device_t);
raise;
when E : others =>
Put_Line ("Other exception:");
Put_Line (Exception_Name (E) & ": " &
Exception_Message (E));
OpenAL.Context.Capture.Stop (Capture_Device_t);
OpenAL.Context.Capture.Close_Device (Capture_Device_t);
raise;
end;
end loop; -- Rate
Put_Line ("");
end loop; -- Format_Info
end loop; -- for Device_Name of
Put_Line ("");
end Test_All_Formats;
--
--
--
-------------------------------------------------------
-------------------------------------------------------
-- MAIN
-------------------------------------------------------
-------------------------------------------------------
begin
--
List_Capture_Device_List;
--
Test_All_Formats;
--
--
Put_Line ("Starting WAV recording...");
Put_Line ("Press Enter to stop recording (max 60 seconds)");
-- First open playback device (required by some OpenAL implementations)
begin
-- alcOpenDevice
Playback_Device_t := OpenAL.Context.Open_Device ("");
Put_Line ("Playback device opened just for dummy");
-- alcCreateContext
PLB_Context_t := Create_Context (Playback_Device_t);
Put_Line ("Playback Context opened just for dummy");
exception
when others =>
Put_Line ("Dummy Open Playback Device ERROR");
OpenAL.Context.Destroy_Context (PLB_Context_t);
OpenAL.Context.Close_Device (Playback_Device_t);
end;
--
-------------------------
-- Open Capture Device
-------------------------
-- alcCaptureOpenDevice
Capture_Device_t := OpenAL.Context.Capture.Open_Device
(Name => "", -- "sof-hda-dsp Digital Microphone"
Frequency => Types.Frequency_t (SAMPLE_RATE),
Format => Mono_16,
Buffer_Size => BUFFER_SIZE);
--
if OpenAL.Context.Is_Valid_Device (Capture_Device_t) then
Put_Line ("Open Valid_Device GOOD");
else
Put_Line ("Open ERROR Capture_Device_t BAD");
end if;
--
------------------------
-- Create WAV output file
------------------------
Ada.Streams.Stream_IO.Create (File_Handle,
Ada.Streams.Stream_IO.Out_File,
"rec-1ch-48000-16b.wav");
Stream := Ada.Streams.Stream_IO.Stream (File_Handle);
--
-- Initialize WAV header
Header.ChunkID := "RIFF"; -- (+00)
Header.ChunkSize := 0; -- (+04) FileSize - 8 Will be updated later
Header.Format := "WAVE";
Header.Subchunk1ID := "fmt ";
Header.Subchunk1Size := 16; -- (+10H) Linear PCM = 16
Header.AudioFormat := 1; -- (+14H) Linear PCM=1
Header.NumChannels := CHANNELS; -- (+16H) Mono=1, Stereo:2
Header.SampleRate := SAMPLE_RATE; -- (+18H)
Header.ByteRate := SAMPLE_RATE * CHANNELS * (BITS_PER_SAMPLE / 8); -- (+1C)
Header.BlockAlign := CHANNELS * (BITS_PER_SAMPLE / 8); -- (+20H)
Header.BitsPerSample := BITS_PER_SAMPLE; -- (+22H)
Header.Subchunk2ID := "data"; -- (+24)
Header.Subchunk2Size := 0; -- (+28H) Number of data. Will be updated later
-- Write header
WAV_Header'Write (Stream, Header);
---------------------------
-- Start recording
---------------------------
OpenAL.Context.Capture.Start (Capture_Device_t);
Next_Loop_Time := Clock + LOOP_PERIOD;
delay until Next_Loop_Time;
Start_Time := Clock;
Put_Line ("Recording started...");
-- LOOP Main recording ---------------------------------------
Recording_Loop : loop
Next_Loop_Time := Next_Loop_Time + LOOP_PERIOD;
delay until Next_Loop_Time;
-- Check for Enter key press
if Key_Pressed then
Put_Line ("Recording stopped by user");
exit Recording_Loop;
end if;
-- Check for timeout (60 seconds)
if Clock - Start_Time >= MAX_DURATION then
Put_Line ("Recording stopped - reached maximum duration " &
"(60 seconds)");
exit Recording_Loop;
end if;
--
----------------------------
-- Check Sample
----------------------------
-- alcGetIntegerv
-- (Capture_Device, ALC_CAPTURE_SAMPLES, 1, Available_Samples'Address);
Available_Samples :=
OpenAL.Context.Get_Capture_Samples (Capture_Device_t);
if Available_Samples > 0 then
-- Valid Samples are available
declare
Samples_To_Read : constant Natural :=
Natural'Min (Available_Samples, MAX_SAMPLES); -- Lesser value
Buffer_t : OpenAL.Buffer.Sample_Array_16_t
(1 .. Sample_Size_t (Samples_To_Read));
Capture_Flag : Boolean := True; -- Initialize Before Capture
begin
----------------------------
-- Get Sample and copy to Buffer
----------------------------
-- alcCaptureSamples
-- (Capture_Device, Buffer'Address, Samples_To_Read);
OpenAL.Context.Capture.Samples_Mono_16
(Device => Capture_Device_t,
Samples => Buffer_t); -- OpenAL.Buffer.Sample_Array_16_t
Capture_Flag := False; -- Set After Capture
--
----------------------------
-- Write Data to File
----------------------------
Total_Samples :=
Total_Samples + Buffer_t'Length;
Sample_Array_16_t'Write (Stream, Buffer_t);
exception
when Constraint_Error =>
Put_Line ("Constraint_Error - likely index range problem");
if Capture_Flag then
Put_Line ("Capture Process Error");
else
Put_Line ("Writing File Process Error");
end if;
return;
when E : others =>
Ada.Text_IO.Put_Line ("ERROR in Samples_Mono_16: " &
Ada.Exceptions.Exception_Message (E));
Ada.Text_IO.Put_Line ("Exception Name: " &
Ada.Exceptions.Exception_Name (E));
Put_Line ("Samples_To_Read=" & Natural'Image (Samples_To_Read));
OpenAL.Context.Capture.Stop (Capture_Device_t);
OpenAL.Context.Capture.Close_Device (Capture_Device_t);
if Capture_Flag then
Put_Line ("Capture Process Error");
else
Put_Line ("Writing File Process Error");
end if;
return;
end;
end if; -- end of Available_Samples
-- Show progress every 5 seconds
declare
Current_Second : constant Integer :=
Integer (To_Duration (Clock - Start_Time));
begin
if Current_Second > 0 and then
Current_Second mod 5 = 0 and then
Current_Second /= Last_Progress_Second and then
Total_Samples > 0
then
Put_Line ("Recording..." & Integer'Image (Current_Second) &
" sec, Total:" & Unsigned_32'Image (Total_Samples) &
" Samples " & Unsigned_32'Image (Total_Samples * 2) &
" byte");
Last_Progress_Second := Current_Second;
end if;
end;
-- Small delay to prevent busy waiting
end loop Recording_Loop; -- --------------------------------
--
--
---------------------------
-- Update the WAV file info and CLOSE
--------------------------
-- Update WAV headers with the corrected sizes
Header.Subchunk2Size := Total_Samples * (BITS_PER_SAMPLE / 8); -- Pos41
Header.ChunkSize := 36 + Header.Subchunk2Size; -- Pos5
-- Rewrite header with correct sizes
Ada.Streams.Stream_IO.Set_Index (File_Handle, 1);
WAV_Header'Write (Stream, Header);
-- Close file
Ada.Streams.Stream_IO.Close (File_Handle);
--
Put_Line ("Total Samples=" &
Unsigned_32'Image (Total_Samples) &
" (" & Unsigned_32'Image (Total_Samples * 2) &
" Byte +44:FileSize=" &
Unsigned_32'Image (Total_Samples * 2 + 44) &
" Byte");
Put_Line ("File Closed");
--
------------------------------
-- Clean up devices
------------------------------
OpenAL.Context.Capture.Close_Device (Capture_Device_t);
Destroy_Context (PLB_Context_t);
OpenAL.Context.Capture.Close_Device (Playback_Device_t);
--
end Record_WAV;
