OpenAL_GtkAda_GUI_Doppler_Effect_Plane_1
Referenced
https://www.openal.org/documentation/OpenAL_Programmers_Guide.pdf
https://www.openal.org/documentation/openal-1.1-specification.pdf
https://github.com/io7m/coreland-openal-ada/blob/master/openal-context-capture.adb
https://github.com/io7m/coreland-openal-ada-dist/tree/master/doc/openal-ada-doc-1.1.1/single.html
(openal-ada 1.1.1 documentation…This is OpenAL-Ada command reference)
Development and confirmed environment
Released 8/30/2025
Tested environment:
Ubuntu: 24.04.2 LTS, Gnat: 14.2.1, Gtkada:25.0.1
OpenAL-Ada(Coreland) 1.1.1, Alire 2.0.2
PC: OMEN 17-ck2095cl, i9-13900HX, RTX-4080
Audio source file: Mono, 44.1kHz, 16bit, 5sec, testsound.wav repeating
File Structures
Directory: ada/oal/gui_doppler_plane_1/ — gnatstudio project files to control build options
Directory: ada/oal/gui_doppler_plane_1/src/ — source files
Directory: ada/oal/gui_doppler_plane_1/bin/ (File “gui_doppler_plane_1” is the executable file.
A picture and a sound files are located here.
GitHub Download:
https://github.com/moriyasum/OpenAL_GtkAda_GUI_Doppler_Effect_Plane_1
GtkAda_Build_Setting_File
with "config/gui_doppler_plane_1_config.gpr";
project Gui_Doppler_Plane_1 is
-- for Library_Name use "Gui_Doppler_Plane_1";
-- for Library_Version use Project'Library_Name & ".so." & Gui_Doppler_Plane_1_Config.Crate_Version;
for Source_Dirs use ("src", "config", "../../../../../usr/local/include/coreland/openal-ada");
for Object_Dir use "obj/" & Gui_Doppler_Plane_1_Config.Build_Profile;
for Create_Missing_Dirs use "True";
for Library_Dir use "lib";
for Exec_Dir use "bin";
for Source_List_File use "sourcefiles.txt";
for Main use ("gui_doppler_plane_1.adb");
-- type Library_Type_Type is ("relocatable", "static", "static-pic");
-- Library_Type : Library_Type_Type :=
-- external ("GUI_DOPPLER_PLANE_1_LIBRARY_TYPE", external ("LIBRARY_TYPE", "static"));
-- for Library_Kind use Library_Type;
package Compiler is
for Default_Switches ("ada") use Gui_Doppler_Plane_1_Config.Ada_Compiler_Switches;
end Compiler;
package Binder is
for Switches ("Ada") use ("-Es"); -- Symbolic traceback
end Binder;
package Install is
for Artifacts (".") use ("share");
end Install;
package Linker is
for Switches ("ada") use ("-lopenal", "-lalut");
end Linker;
end Gui_Doppler_Plane_1;
gui_doppler_plane_1.adb
tintr.ads
tintr.adb
gui.ads
gui.adb
gval.ads
audio.ads
audio.adb
common.ads
common.adb
openal.ads
openal-alc_thin.ads
openal-buffer.adb
openal-buffer.ads
openal-context.adb
openal-context.ads
openal-context-capture.adb
openal-context-capture.ads
openal-context-error.adb
openal-context-error.ads
openal-error.adb
openal-error.ads
openal-extension.ads
openal-extension-efx.adb
openal-extension-efx.ads
openal-extension-efx_thin.adb
openal-extension-efx_thin.ads
openal-extension-float32.adb
openal-extension-float32.ads
openal-extension-float32_thin.ads
openal-global.adb
openal-global.ads
openal_info.adb
openal_info.ads
openal_info_main.adb
openal-list.adb
openal-list.ads
openal-listener.adb
openal-listener.ads
openal-load.adb
openal-load.ads
openal-source.adb
openal-source.ads
openal-thin.ads
openal-types.ads
Picture_of_Listener_140x140pix
1kHz_Sound_File
1kHz Tone
Format: PCM, Duration:5sec, Bitrate:705.6kbps, 1channel, Sampling rate:44.1kHz, 16bit, Size:441kB
Build Project
Setup Alire Environment
~$ cd ada/oal
~/ada/oal$ alr init gui_doppler_plane_1 –bin (dash dash bin)
Alire needs some user information to initialize the crate author and maintainer,
for eventual submission to the Alire community index. This information will be
interactively requested now.
You can edit this information at any time with 'alr config'
Select the kind of crate you want to create:
1. LIBRARY
2. BINARY
Enter your choice index (first is default):
> Enter
Enter a short description of the crate: (default: '')
> Enter
Using default: ''
Please enter your email address: (default: 'example@example.com')
> Enter
Using default: 'example@example.com'
Select a software license for the crate?
1. MIT OR Apache-2.0 WITH LLVM-exception
2. MIT
3. Apache-2.0 WITH LLVM-exception
4. Apache-2.0
5. BSD-3-Clause
6. LGPL-3.0-or-later
7. GPL-3.0-or-later WITH GCC-exception-3.1
8. GPL-3.0-or-later
9. Other...
Enter your choice index (first is default):
> Enter
Enter a comma (',') separated list of tags to help people find your crate: (default: '')
> Enter
Using default: ''
Enter an optional Website URL for the crate: (default: '')
> Enter
Using default: ''
✓ gui_doppler_plane_1 initialized successfully.
Setup GtkAda Environment
~/ada/oal$ cd gui_doppler_plane_1/
~/ada/oal/gui_doppler_plane_1$ alr with gtkada
◴ Updating index... remote: Enumerating objects: 36, done.
remote: Counting objects: 100% (31/31), done.
remote: Compressing objects: 100% (22/22), done.
remote: Total 36 (delta 17), reused 20 (delta 9), pack-reused 5 (from 1)
Unpacking objects: 100% (36/36), 21.23 KiB | 905.00 KiB/s, done.
From https://github.com/alire-project/alire-index
f5b1032..327f9e4 stable-1.4.0 -> origin/stable-1.4.0
Already up to date.
◵ Solving dependencies: 0/0/0/6 (complete/partial/dupes/states)... Looking for e ◵ Solving dependencies: 0/0/0/6 (complete/partial/dupes/states)... Looking for e ◵ Solving dependencies: 0/0/0/6 (complete/partial/dupes/states)... Looking for e ◵ Solving dependencies: 0/0/0/6 (complete/partial/dupes/states)... Looking for e ◵ Solving dependencies: 0/0/0/6 (complete/partial/dupes/states)... Looking for e ◵ Solving dependencies: 0/0/0/6 (complete/partial/dupes/states)... Looking for e Requested changes:
✓ gtkada ^25.0.1 (add)
Changes to dependency solution:
+ gtkada 25.0.1 (new)
+📦 libgtk3 3.24.41 (new,indirect,system package)
+📦 make 4.3.0 (new,indirect,system package)
+📦 pkg_config 1.8.1 (new,indirect,system package)
Do you want to proceed?
[Y] Yes [N] No (default is Yes) YesBuild
~/ada/oal/gui_doppler_plane_1$ alr build
ⓘ Building gui_doppler_plane_1=0.1.0-dev/gui_doppler_plane_1.gpr...
Setup
[mkdir] object directory for project Gui_Doppler_Plane_1
[mkdir] library directory for project Gui_Doppler_Plane_1
Compile
[C] misc_generated.c
[C] misc.c
[Ada] gui_doppler_plane_1_config.ads
[Ada] gui_doppler_plane_1.ads
/home/mm/.local/share/alire/builds/gtkada_25.0.1_d3787772/05561da954afaee17128f59bba699db2f2e4a4215317b2b818a8016192c82334/src/misc.c: In function 'ada_g_module_build_path':
/home/mm/.local/share/alire/builds/gtkada_25.0.1_d3787772/05561da954afaee17128f59bba699db2f2e4a4215317b2b818a8016192c82334/src/misc.c:161:3: warning: 'g_module_build_path' is deprecated [-Wdeprecated-declarations]
161 | return g_module_build_path (directory, module_name);
| ^~~~~~
In file included from /usr/include/glib-2.0/gio/giomodule.h:31,
from /usr/include/glib-2.0/gio/gio.h:102,
from /usr/include/gtk-3.0/gdk/gdkapplaunchcontext.h:28,
from /usr/include/gtk-3.0/gdk/gdk.h:32,
from /home/mm/.local/share/alire/builds/gtkada_25.0.1_d3787772/05561da954afaee17128f59bba699db2f2e4a4215317b2b818a8016192c82334/src/misc.c:38:
/usr/include/glib-2.0/gmodule.h:142:23: note: declared here
142 | gchar* g_module_build_path (const gchar *directory,
| ^~~~~~~~~~~~~~~~~~~
Build Libraries
[gprlib] gtkada.lexch
[gprlib] Gui_Doppler_Plane_1.lexch
[archive] libgtkada.a
[index] libgtkada.a
[archive] libGui_Doppler_Plane_1.a
[index] libGui_Doppler_Plane_1.a
✓ Build finished successfully in 1.30 seconds.
~/ada/oal/gui_doppler_plane_1$ ls -al
total 44
drwxrwxr-x 8 mm mm 4096 Aug 26 21:19 .
drwxrwxr-x 12 mm mm 4096 Aug 26 21:13 ..
drwxrwxr-x 3 mm mm 4096 Aug 26 21:19 alire
-rw-rw-r-- 1 mm mm 275 Aug 26 21:16 alire.toml
drwxrwxr-x 2 mm mm 4096 Aug 26 21:13 config
-rw-rw-r-- 1 mm mm 29 Aug 26 21:13 .gitignore
-rw-rw-r-- 1 mm mm 986 Aug 26 21:13 gui_doppler_plane_1.gpr
drwxrwxr-x 2 mm mm 4096 Aug 26 21:19 lib
drwxrwxr-x 3 mm mm 4096 Aug 26 21:19 obj
drwxrwxr-x 3 mm mm 4096 Aug 26 21:13 share
drwxrwxr-x 2 mm mm 4096 Aug 26 21:13 src
Setup Source Files
Download files from GitHub and copy these directories:
2 file to the current directory ./
gui_doppler_plane_1.gpr — Available from GitHub or you can generate with GnatStudio.
sourcefiles.txt
10 files to the src directory src/
audio.ads
audio.adb
common.ads
common.adb
gui.ads
gui.adb
gui_doppler_plane_1.adb
gval.ads
tintr.ads
tintr.adb
Startup GnatStudio to create the project gpr file
~/ada/oal/gui_doppler_plane_1$ alr edit

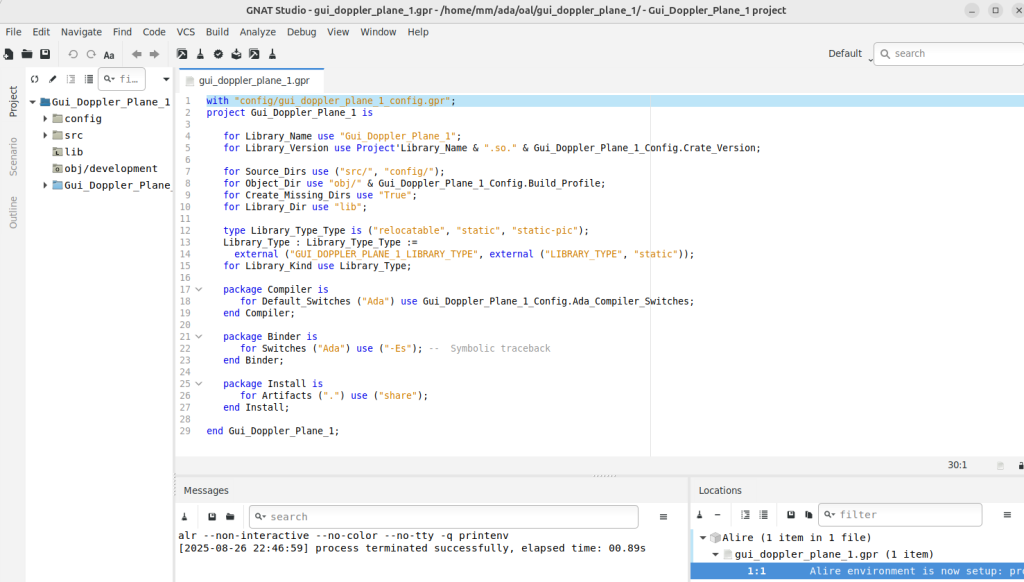

GnatStudio window
Press “Edit” – ”Project Properties”

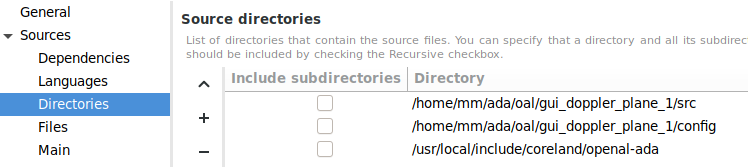

Setup OpenAL source files directory
“Directories” – “+” – navigate “Computer” — “usr” – “local” – “include” – “coreland” – “openal-ada” – “OK”

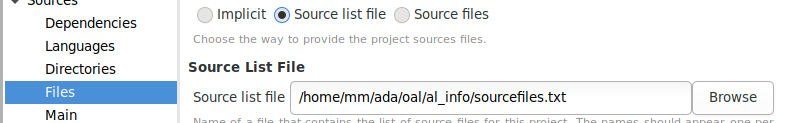

Press “Files” – “source list file” Radio button
“Browse” – choose “sourcefiles.txt” which you created – “OK”
NOTE: This file setting remembers the previous directory configuration, so when setting up a new project, be careful not to confuse it with the previous settings.
Press “Main” – “+” – “ – check “gui_doppler_plane_1.adb” – OK
“Build”—”Switches”—”Ada Linker” tab: Enter this line into the bottom rectangular box.
-lopenal -lalut
“Save” to close the properties window.
Press “Reload”.
New project file: ./cli_doppler_1.gpr was created:
Copy 2 sound and image files for execution
2 files to bin/ directory
testsound.wav (1kHz tone sound)

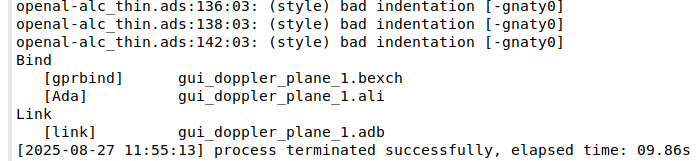

Build all
Although many warnings are displayed as shown above, none of them are fatal errors.
If the last line ends with “[Link]”, the build was successful.

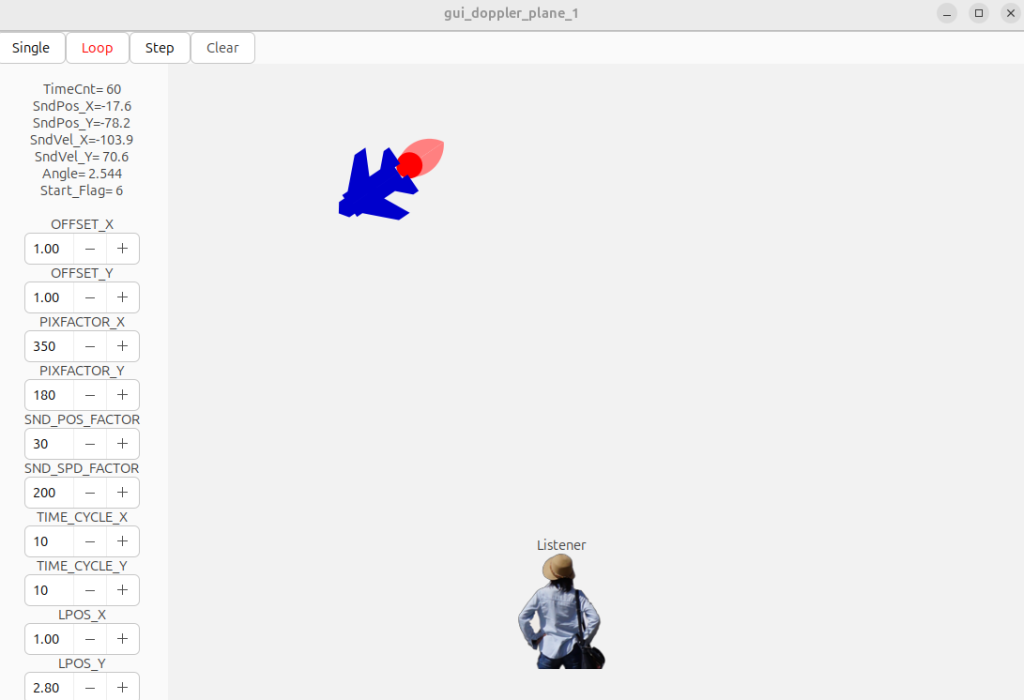

Execution
The application can only be executed from the console. It cannot be launched from GnatStudio.
The following 2 files are also required in the same directory as the executable:
- BackShot140140.png: Listener image file (140×140 pixels)
- testsound.wav: Audio file
~/ada/oal/gui_doppler_plane_1/bin$ ./gui_doppler_plane_1

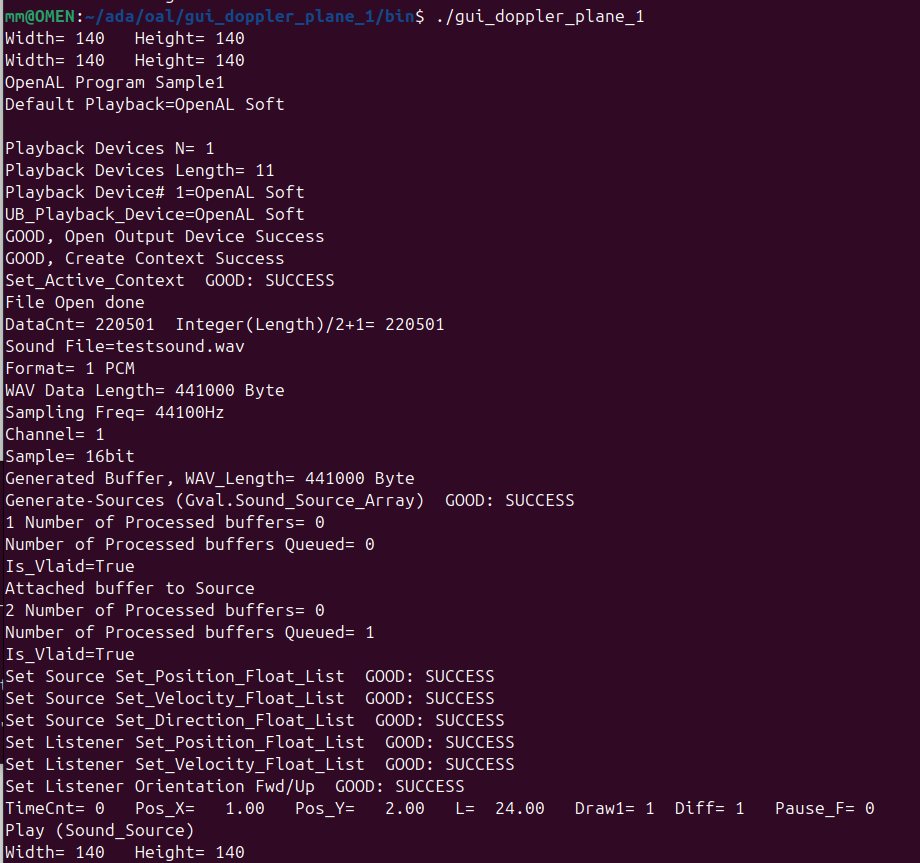

Console messages
